UDS Explained: How Scan Tools Talk to Modern Vehicles
TL;DR
UDS is essentially the “language” that many scan tools use to communicate with vehicle computers (ECUs). It’s defined by ISO 14229 and lets a diagnostic tester (scan tool) control diagnostic functions in an ECU.

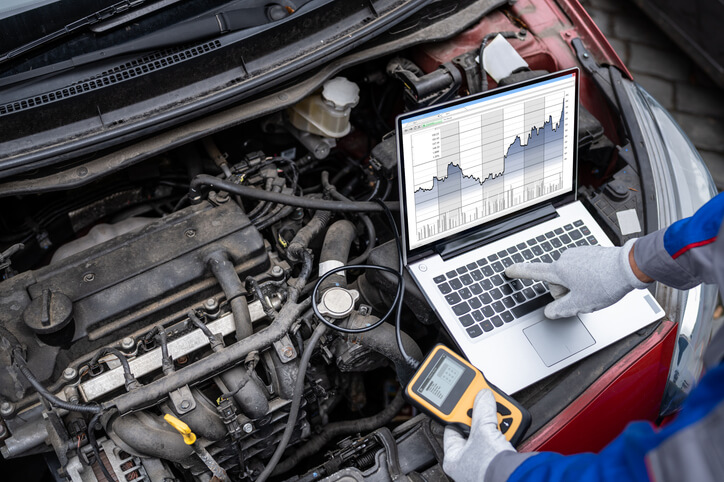

A scan tool sends diagnostic services (commands), the ECU answers back, and that’s how you read codes, view live data, run tests, and (with permission) program modules.
Programming and security matter because UDS can reprogram ECUs, so many functions require the right session and security access to prevent unsafe or unauthorized changes.
Modern cars are full of computers. Each of the engine, transmission, ABS, and airbags has a control unit (an ECU). A scan tool doesn’t “guess” what’s wrong. It messages the ECU and waits for a reply.
That messaging system is often UDS diagnostics, one of the big reasons scan tools can do so much more today than just read a check-engine light.
What is UDS Diagnostics in Plain English?
UDS stands for *Unified Diagnostic Services*. ISO describes it as “diagnostic services” that let a diagnostic tester (client) control diagnostic functions in an on-vehicle ECU (server) over a serial data link in a road vehicle.
Vector (a well-known automotive tools company) explains it simply: UDS is a protocol used by diagnostic systems to communicate with ECUs, used to diagnose errors and reprogram ECUs (like reading/deleting faults or flashing firmware).
Think of it like texting:
- Your scan tool sends a message: “Hey ECU, tell me your fault codes.”
- The ECU texts back: “Here they are.”
That message style is UDS.
How Do Diagnostic Services Actually Work?
UDS is made of lots of “commands” called services. Each service has a Service Identifier (SID), basically a number that tells the ECU what you’re asking for. One UDS reference explains that the SID is the first byte of each diagnostic message payload and defines the message purpose and format.
Here are a few UDS services you’ll see in real scan tool features:
- Read trouble codes: `0x19 ReadDTCInformation`
- Clear trouble codes: `0x14 ClearDiagnosticInformation`
- Live data (reading values): `0x22 ReadDataByIdentifier`
- Actuator controls / functional tests: `0x2F InputOutputControlByIdentifier` and `0x31 RoutineControl`
- Keep the session “awake” during longer work: `0x3E TesterPresent`
This is the core idea of ECU communication: request → response. If the scan tool asks the right question in the right “format,” the ECU answers.
What is Module Diagnostics, and Why Do Cars Have so Many Modules?
Module diagnostics just means diagnosing *one specific computer/module* (like the ABS module, BCM, PCM, TCM, etc.). ISO even lists examples of ECUs UDS can talk to, like fuel injection, automatic gearbox, and ABS.
Why so many modules? Because each module controls a different job, and each module has its own data, faults, and tests. That’s why a basic reader might only see some powertrain info, while an advanced tool can talk to many modules.
If you’re exploring Auto mechanic school in Surrey, learning how modules “talk” is a big part of understanding modern diagnostics (even before you get into deep programming).
How Does UDS Relate to DTCs, Live Data, and Actuations?
This is where UDS starts to feel practical.
- DTCs (trouble codes): UDS has a dedicated service (0x19) for reading DTC info and another (0x14) for clearing it.
- Live data: UDS can request data records using `0x22 ReadDataByIdentifier` (often called “Read DID”).
- Actuations / output tests: Some scan tools can command outputs (like cycling a solenoid or running a routine) using services like `0x2F` and `0x31`.

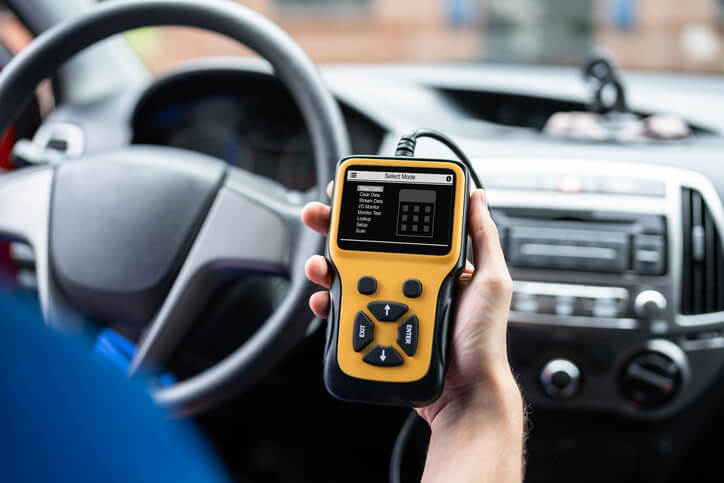

So, when a scan tool says “Active Test” or “Functional Test,” it’s usually sending a UDS service request, then watching the ECU’s response.
Why Do Programming and Security Matter More With UDS Vehicles?
Because UDS can do more than read data. Vector notes UDS is used to reprogram ECUs (including flashing new firmware). To prevent the wrong person (or the wrong tool) from making risky changes, ECUs use two big safety controls:
- Diagnostic sessions: UDS can change sessions using `0x10 DiagnosticSessionControl`. Different sessions enable different features.
- Security access: UDS includes `0x27 SecurityAccess`, which allows a client to unlock restricted functions/services.
This is why programming often requires OEM access, passwords/authorization, or security gateways. The vehicle is protecting itself from unsafe changes. If you want to build the basics first, an Auto mechanic course can help you learn scan tool workflows, data interpretation, and safe procedures before diving into advanced programming.
Interested in learning how modern scan tools work (including module systems and communication basics)?
Check out the Auto mechanic training course in Surrey at ATC and start building real-world diagnostic confidence.
Key takeaways
- UDS diagnostics is a standardized “scan tool ↔ ECU” communication method defined by ISO 14229.
- Scan tools use diagnostic services (SIDs) to read codes, pull live data, run tests, and (when allowed) program modules.
- Programming is protected with sessions and security access because changing ECU software/settings can affect safety and driveability.
FAQ
Q: How does UDS relate to DTCs, live data, and actuations?
A: UDS uses diagnostic services (commands). For example, DTC reading is commonly tied to `0x19 ReadDTCInformation`, live data is often requested using `0x22 ReadDataByIdentifier`, and actuations/tests may use services like `0x2F` and `0x31`.
Q: Why do programming and security matter more with UDS vehicles?
A: Because UDS can do more than read data. Vector notes UDS is used to reprogram ECUs (including flashing new firmware).
Q: What is UDS, and where do techs see it in real life?
A: UDS is a standardized way for a diagnostic tester (scan tool) to communicate with vehicle ECUs, defined in ISO 14229. Techs see it when they read/clear codes, view live data, run module tests, or perform programming on modern vehicles.
