MAP Sensor Problems: How Technicians Diagnose Load and Fuel-Mixture Issues
In Brief: Manifold Absolute Pressure Sensor Problems and Diagnostics
- A manifold absolute pressure sensor measures absolute pressure in the intake manifold.
- Incorrect MAP information can affect calculations used for fuel delivery and ignition control.
- Similar symptoms can come from wiring, vacuum leaks, blocked pressure passages, or other engine problems.
- Technicians confirm the fault using scan data, pressure or vacuum checks, and electrical testing.
An engine control module makes decisions using information from multiple sensors. If one of those inputs is inaccurate, the resulting symptoms can make the sensor itself look guilty, even when the actual problem is somewhere else.
The manifold absolute pressure sensor, commonly abbreviated as MAP sensor, is a good example. It reports intake manifold pressure, providing the engine control system with information it uses to calculate air mass, fuel delivery, ignition timing, and engine load.
For students in our auto mechanic training, MAP diagnosis demonstrates why technicians compare data and test circuits before replacing components.
What Does a Manifold Absolute Pressure Sensor Do in a Car?
What does a MAP sensor do in a car? A MAP sensor measures absolute pressure in the engine’s intake manifold and sends that information to the engine control module.
When the engine is running under relatively high intake vacuum, manifold absolute pressure is lower. As the throttle opens and engine load increases, manifold pressure generally rises. The control module can combine MAP information with inputs such as engine speed and intake-air temperature to calculate air mass and determine appropriate fuel delivery.
MAP information can also contribute to ignition strategy. That makes an accurate pressure signal important as engine operating conditions change.
A useful diagnostic clue occurs before the engine even starts. With key-on/engine-off, intake-manifold pressure should be close to atmospheric pressure because the engine is not producing intake vacuum. Comparing this reading with expected barometric pressure can help identify an implausible MAP signal.
What Are the Symptoms of a Bad MAP Sensor?
Possible symptoms include poor performance, unstable idle, misfiring, difficult starting, increased fuel consumption, a rich or lean mixture, and an illuminated engine warning light.
The important word is possible.
These bad MAP sensor symptoms are not unique to the sensor. A damaged vacuum hose, blocked pressure connection, poor electrical supply or ground, wiring problem, intake leak, or another engine-management fault can produce misleading pressure information or similar drivability complaints. HELLA specifically identifies damaged wiring, power or ground faults, and blocked or damaged vacuum connections among possible causes associated with MAP faults.
Likewise, finding a MAP sensor code does not automatically prove that the sensor needs replacement. A diagnostic trouble code identifies the system or condition the control module detected; technicians still need to determine why it occurred. training to become a mechanic, that distinction is fundamental.
How Do Technicians Test a MAP Sensor?
They can combine visual inspection, scan-tool analysis, pressure or vacuum checks, and electrical measurements while following specifications for the vehicle being diagnosed.
A logical process can include:
- Check stored diagnostic trouble codes. Note related faults rather than focusing only on the MAP circuit.
- Inspect the sensor and connection. Look for damaged wiring, loose connectors, contamination, blocked pressure passages, or damaged vacuum tubing where applicable.

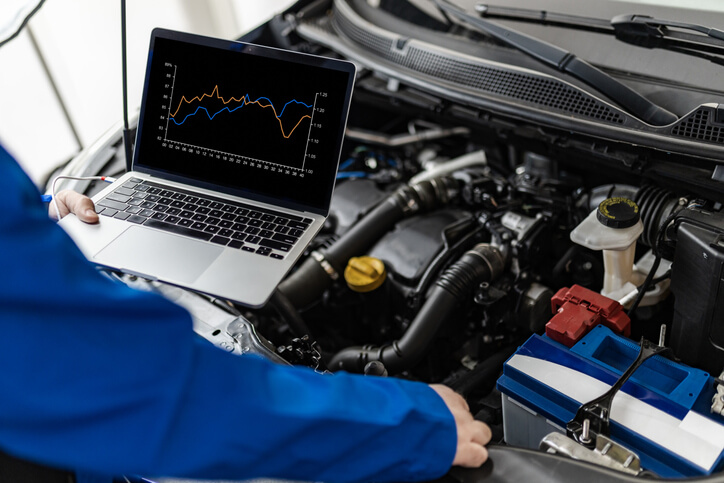

- Examine scan data. Compare the reported pressure with expected conditions and observe whether it changes plausibly as engine load changes.
- Verify the pressure or vacuum source. An accurate sensor cannot report correct manifold conditions through a blocked or leaking connection.

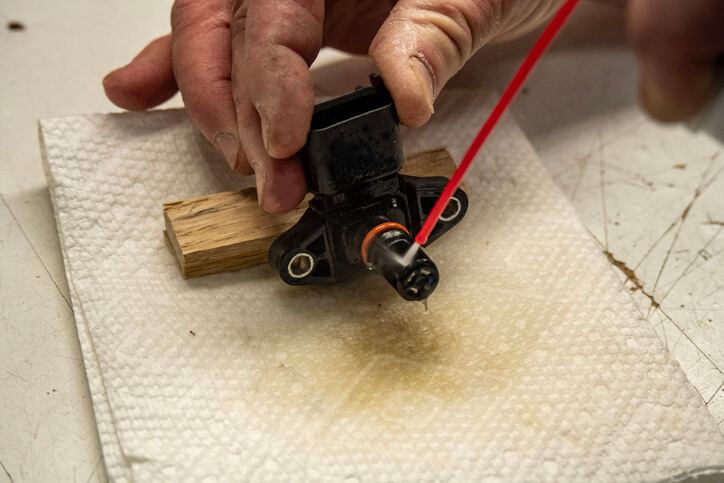

- Test the electrical circuit. Depending on the design, technicians may verify supply/reference voltage, ground, and signal behaviour using suitable equipment and service specifications.
- Compare the evidence. Determine whether the problem lies with the sensor, its circuit, the pressure source, or another engine condition.
HELLA’s current troubleshooting guidance similarly calls for inspecting connectors, cables, and vacuum connections, checking fault memory and actual values, and testing power and ground connections.
Learning how to test MAP sensor operation in this way helps students in our auto mechanic school develop a diagnostic mindset instead of treating trouble codes as replacement instructions.
What Is the Difference Between a MAP Sensor and a MAF Sensor?
A MAP sensor measures intake-manifold pressure, while a mass air flow (MAF) sensor measures the amount of air entering the engine.
The MAP sensor vs. MAF sensor distinction is important because both can provide information the engine-management system uses to determine appropriate fuel delivery, but they obtain that information differently.
| Sensor | What It Measures | How the Information Is Used |
| MAP | Absolute pressure in the intake manifold | Helps calculate air mass/load and support fuel and ignition decisions |
| MAF | Air mass entering the engine | Provides direct airflow information used for fuel calculations |
Some fuel-injected engines use a MAP sensor, some use a MAF sensor, and some, including many turbocharged applications, may use both.
That also means diagnosis must begin by understanding the specific engine-management strategy. There is no universal test value that applies to every MAP sensor or every vehicle.
Why Does MAP Sensor Diagnosis Require More Than a Trouble Code?
Modern engine management depends on inputs that interact. If the control module receives a pressure value that does not agree with throttle position, engine speed, airflow, or expected atmospheric conditions, technicians need to determine which piece of information is misleading.
That may lead back to the manifold absolute pressure sensor, but it may also reveal a wiring fault, blocked passage, damaged vacuum connection, intake leak, or another mechanical condition.
This is why effective diagnosis combines mechanical understanding with electrical testing and scan-tool interpretation. The objective is not simply to find a code. It is to explain the evidence and confirm the actual fault before making a repair.
Are you looking for comprehensive auto mechanic training?
Contact ATC Cambridge for more information.
Key Takeaways
- The MAP sensor reports intake-manifold absolute pressure to the engine control system.
- Incorrect MAP information can affect load, fuel-mixture, and ignition calculations.
- MAP sensor problems can resemble faults elsewhere in the intake or electrical system.
- Scan data should be compared with actual engine operating conditions.
- A MAP sensor code is a diagnostic starting point, not proof that the sensor has failed.
- Technicians use vehicle-specific specifications to confirm the cause before replacing parts.
FAQ
What Does a MAP Sensor Do in a Car?
A manifold absolute pressure sensor measures intake-manifold pressure and sends that information to the engine control module, where it can contribute to calculations involving engine load, air mass, fuel delivery, and ignition timing.
What Are the Symptoms of a Bad MAP Sensor?
Possible bad MAP sensor symptoms include unstable idle, poor performance, difficult starting, misfires, rich or lean operation, increased fuel consumption, and an engine warning light. These symptoms can have other causes, so testing is necessary.
How Do Technicians Test a MAP Sensor?
Technicians can inspect the sensor and pressure connection, review trouble codes and live scan data, compare readings with expected pressure conditions, and test the electrical supply, ground, and signal according to vehicle-specific service information.
What Is the Difference Between a MAP Sensor and a MAF Sensor?
A MAP sensor measures absolute pressure in the intake manifold. A MAF sensor measures the mass of air entering the engine. Depending on its engine-management strategy, a vehicle may use one or both.
