Hybrid Motor Generator Basics: MG1, MG2, and Power-Split Operation

In Brief: Hybrid Motor Generator Basics

• MG1 primarily generates electricity, starts the gasoline engine, and helps control engine speed.
• MG2 primarily drives the wheels electrically and recovers energy during braking.
• A planetary gearset connects the engine and motor-generators in Toyota-style power-split systems.
• Hybrid layouts vary, so technicians must identify the system before diagnosing it.


---

Most drivers know that a hybrid vehicle combines a gasoline engine with electric power. What is less obvious is how these two power sources work together.

In many Toyota-style hybrids, two electric machines, MG1 and MG2, help manage the vehicle’s movement and electricity. A hybrid motor generator can operate as a motor, using electricity to create movement, or as a generator, converting movement into electricity.

Understanding these components helps answer a familiar question: how do hybrid cars work without constantly switching between completely separate driving systems?

What Are MG1 and MG2 in a Hybrid Vehicle?

They are two electric motor-generators that perform different jobs in many Toyota-style hybrid systems.

• MG1 (Motor-Generator 1): Primarily generates electricity, starts the gasoline engine, and helps regulate engine speed.
• MG2 (Motor-Generator 2): Primarily drives the wheels using electrical power and generates electricity during regenerative braking.

A motor generator unit can both use electricity to produce movement and convert movement into electricity. MG1 and MG2 are designed to perform these functions as part of the hybrid powertrain.

For students exploring hybrid and electrical mechanic training, understanding these different roles provides a foundation for learning how hybrid systems operate.

How Do Hybrid Motor Generators Start the Gasoline Engine?

In Toyota-style power-split hybrids, MG1 acts as the engine starter. When the hybrid control system requests an engine start, MG1 uses electrical power to turn the gasoline engine through the connected planetary gears.

Once the engine is running, MG1 can generate electricity for the hybrid system. MG2 has a different primary responsibility. The Toyota hybrid motor used for propulsion helps move the vehicle using electricity from the battery or power generated by MG1.

These functions help the vehicle transition between electric driving and combined gasoline-electric operation.. Understanding this interaction gives students in automotive training in Montreal a stronger foundation for learning about electrified powertrains.

What Does a Hybrid Power-Split Device Do?

It connects the gasoline engine and electric motor-generators so the hybrid system can manage how power reaches the wheels and how electricity is generated.

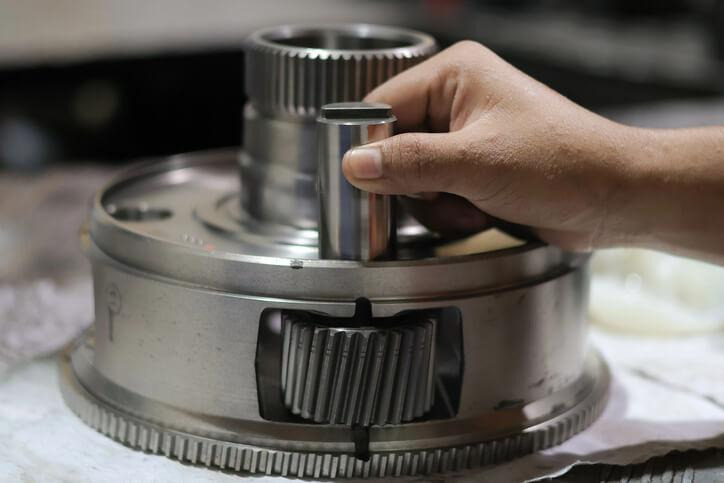

The Toyota power split device uses a planetary gearset, which contains three main parts:

• Sun gear: Connected to MG1 in the classic Toyota power-split arrangement.
• Planet carrier: Connected to the gasoline engine.
• Ring gear: Ring gear: Connected to the drive-output side in the classic Toyota power-split arrangement, with MG2 contributing propulsion through the transaxle gearing.

When the engine runs, some of its mechanical power can travel toward the wheels while another portion drives MG1 to generate electricity. MG2 can also contribute driving power.

The Toyota hybrid system manages these interactions electronically, allowing engine speed and wheel speed to differ without the conventional stepped gear changes found in many automatic transmissions.

For future technicians, recognizing these mechanical and electrical connections helps explain why hybrid transmission diagnosis differs from conventional transmission work.

Do All Hybrid Vehicles Use the Same MG1 and MG2 Layout?

No. Hybrid manufacturers use different powertrain designs, and even Toyota hybrid systems can vary by model and generation. Some hybrids use power-split systems with two motor-generators. Others use different arrangements, including electric motors integrated with conventional transmissions.

This means technicians should never assume that every hybrid has the same components or operating sequence.

At our auto mechanic school, understanding the differences between vehicle systems is an important part of developing sound diagnostic habits. Before servicing a hybrid powertrain, technicians need to identify its design, consult the manufacturer’s service information, and follow the appropriate high-voltage safety procedures.

Are you looking for comprehensive hybrid and electrical mechanic training?

Contact ATC Montreal for more information.

Key Takeaways

• MG1 primarily starts the engine, generates electricity, and helps control engine speed.
• MG2 primarily drives the vehicle and recovers energy during regenerative braking.
• A planetary power-split device helps coordinate mechanical and electrical power.
• Hybrid powertrain layouts differ between manufacturers and models.
• Understanding these systems helps future technicians approach hybrid diagnosis more accurately.

FAQ

What Are MG1 and MG2 in a Hybrid Vehicle?

MG1 and MG2 are electric motor-generators used in many Toyota-style hybrids. MG1 mainly generates electricity and starts the gasoline engine, while MG2 mainly provides driving power and recovers energy during braking.

How Do Hybrid Motor-Generators Start the Gasoline Engine?

MG1 uses electrical power to rotate the gasoline engine through the planetary gearset. This allows the hybrid system to start the engine without a conventional starter motor in the classic Toyota power-split arrangement.

What Does a Hybrid Power-Split Device Do?

It uses planetary gears to connect the gasoline engine, MG1, and the drive output. This allows the hybrid system to coordinate mechanical power delivery and electrical generation.

Do All Hybrid Vehicles Use the Same MG1 and MG2 Layout?

No. Hybrid systems vary by manufacturer, model, and generation. Some use two motor-generators and a power-split device, while others use different motor and transmission arrangements.
